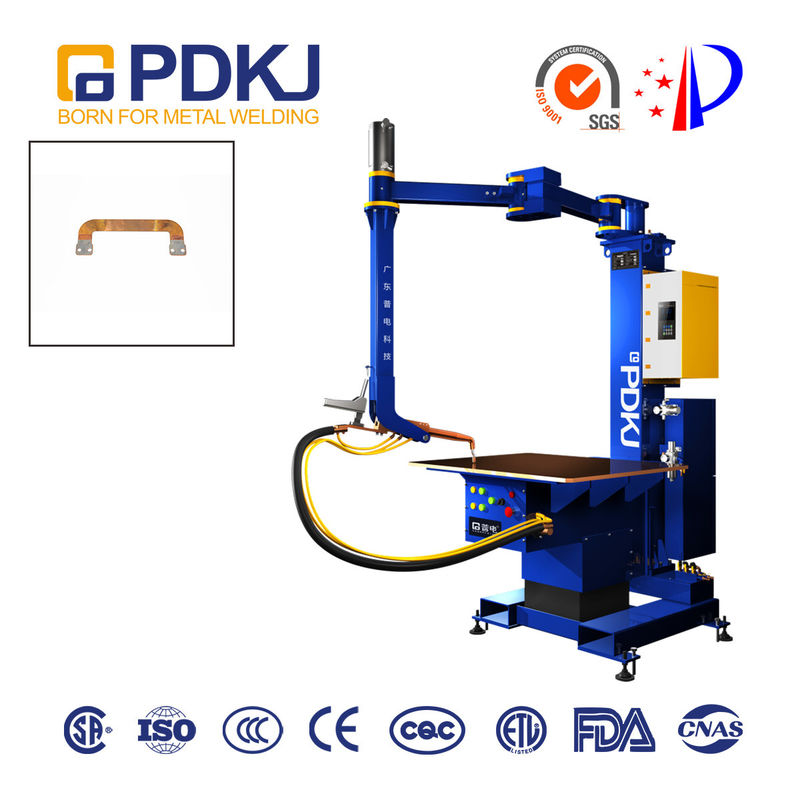

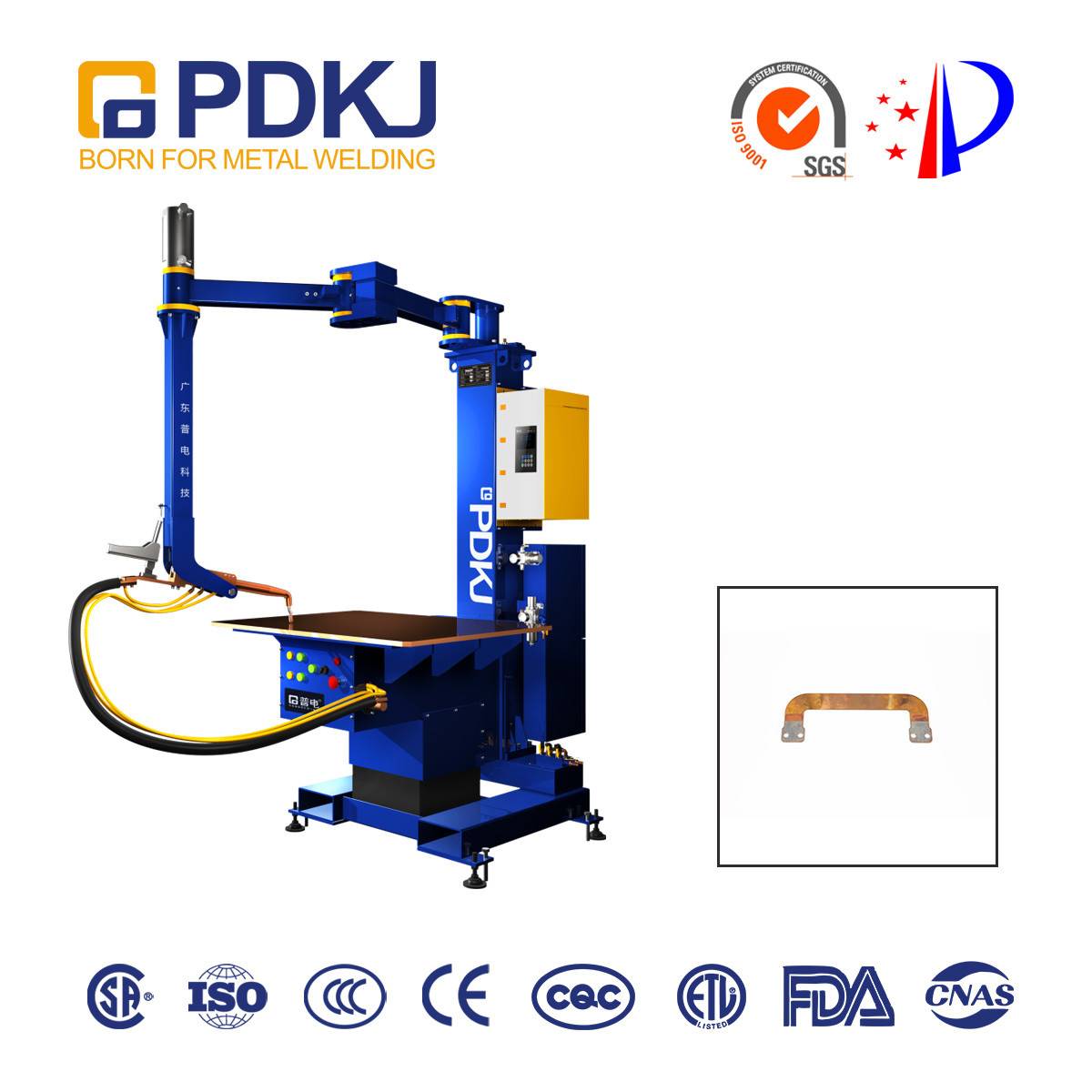

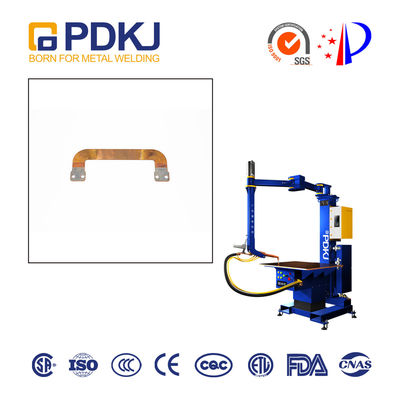

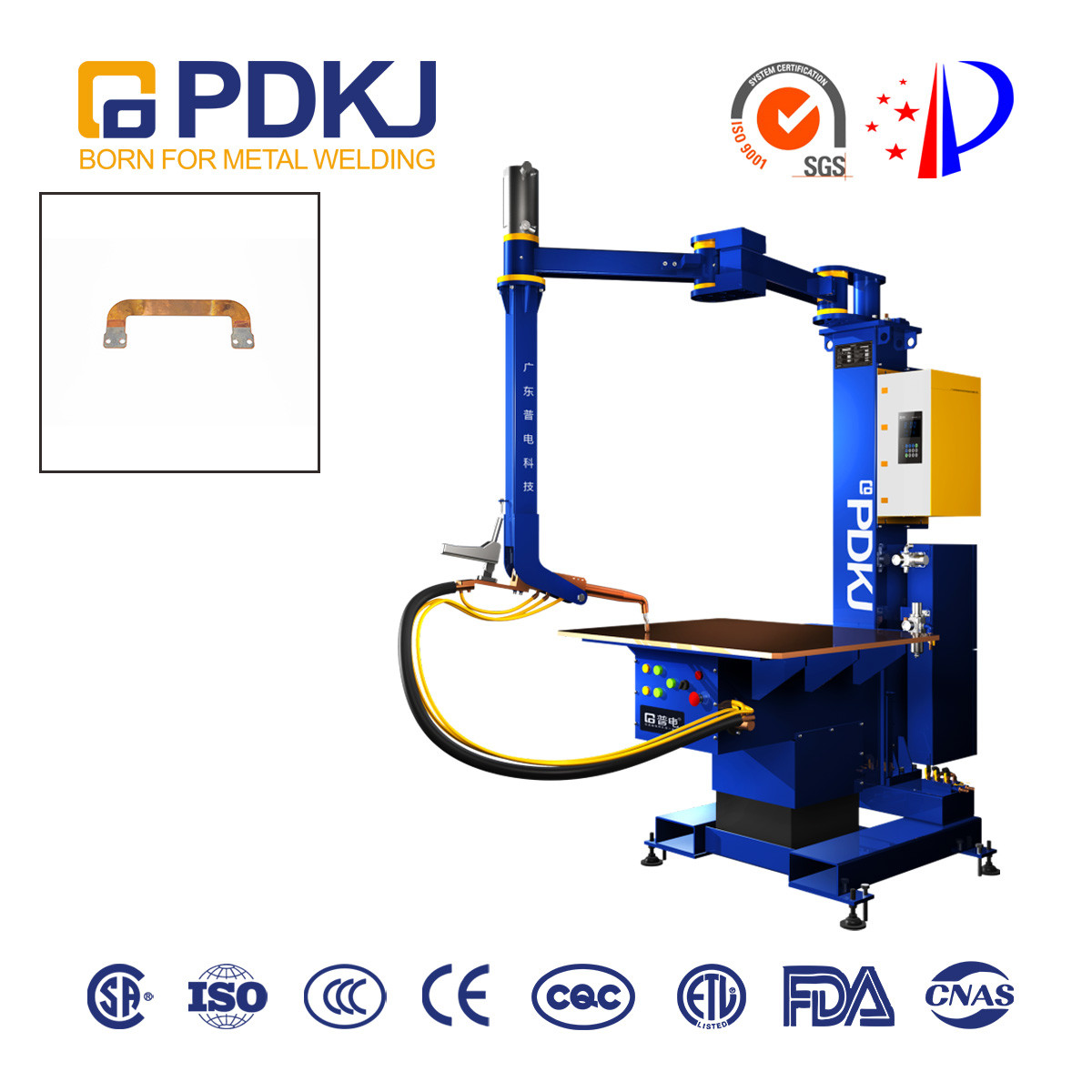

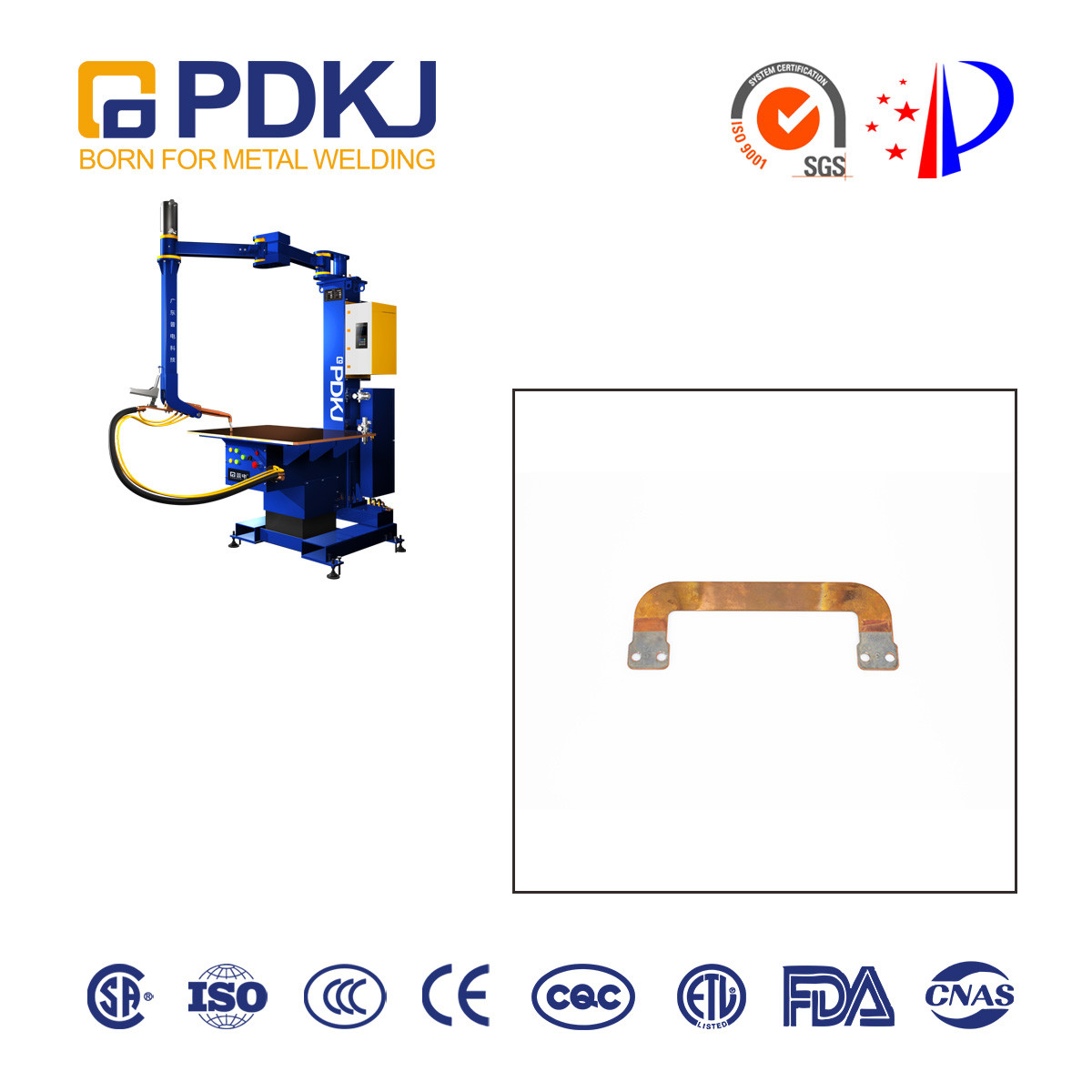

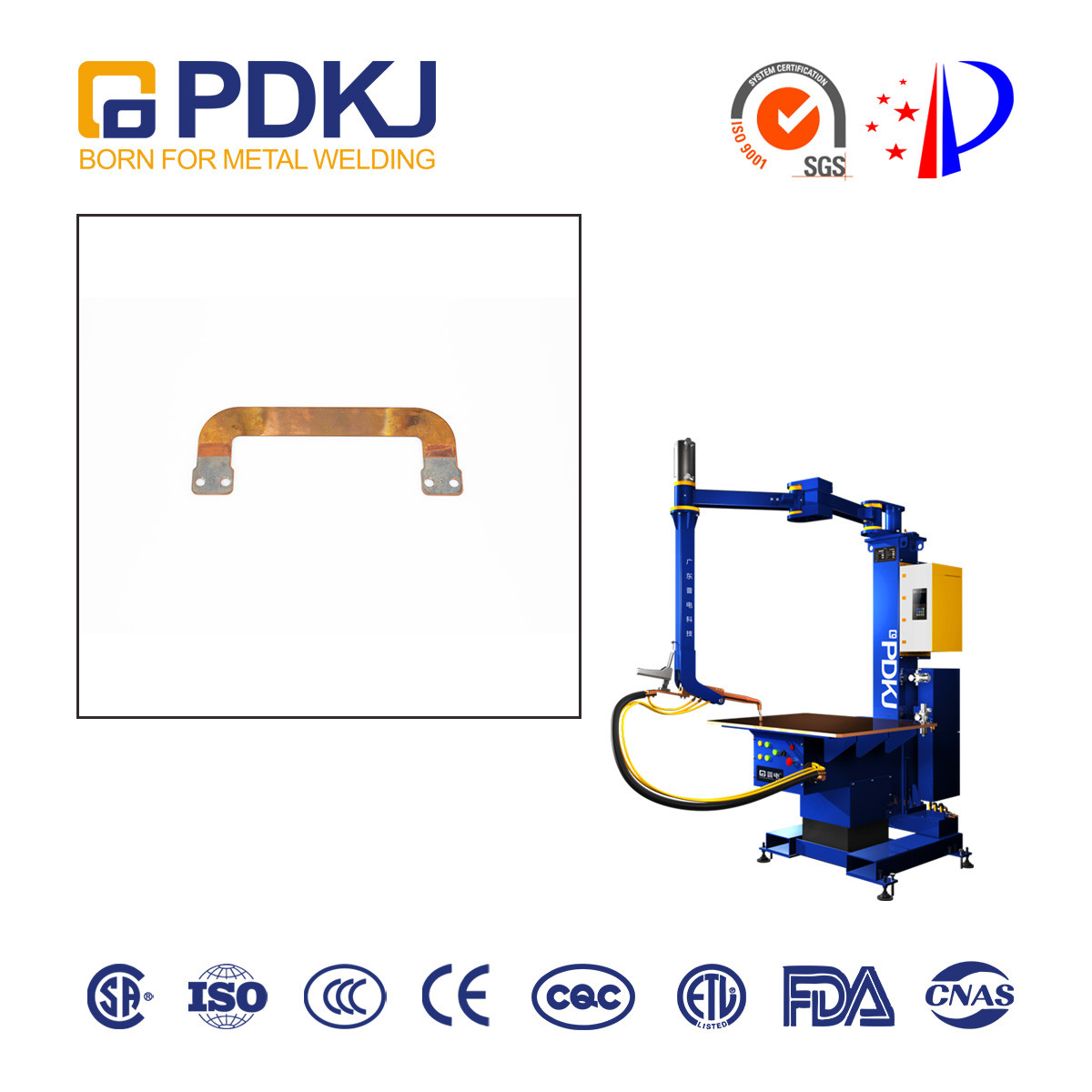

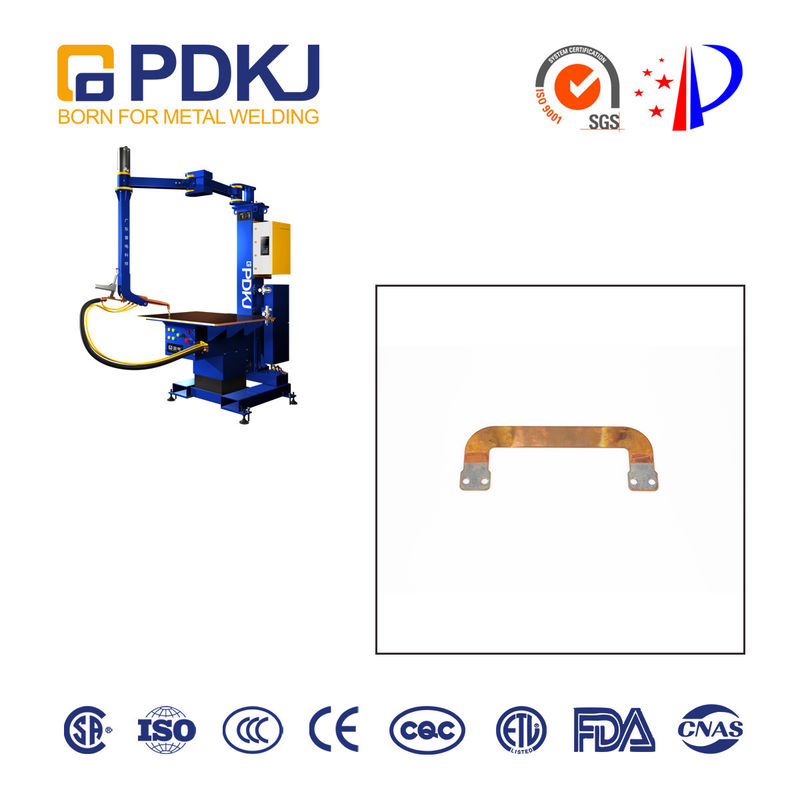

Platform Type Intermediate-Frequency Inverter Seamless Spot Welding Machine For Copper Sheet Welding

বেসিক ইনফরমেশন
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: PDKJ
সাক্ষ্যদান: ISO CE SGS
মডেল নম্বার: DB170W
ন্যূনতম চাহিদার পরিমাণ: 1 একক
মূল্য: USD 45000-48000
প্যাকেজিং বিবরণ: Woonen কেস বা লোহার বাক্স
ডেলিভারি সময়: 7-25 দিন
পরিশোধের শর্ত: এল / সি, টি / টি
যোগানের ক্ষমতা: প্রতি মাসে 100 এসইটি
বিস্তারিত তথ্য
Eldালাই শৈলী: প্রতিরোধের ldালাই ব্যবহার: স্পট ঢালাই
মূল বিক্রয় পয়েন্ট: দ্রুত, বিজোড় প্রযোজ্য শিল্প: <i>Building Material;</i> <b>ভবন তৈরির সরঞ্ছাম;</b> <i>Machinery Repair;</i> <b>যন্ত্রপাতি মেরামত;</
বিক্রয় পরে পরিষেবা: <i>Field installation;</i> <b>মাঠ ইনস্টলেশন;</b> <i>Site Commissioning and training</i> <b>সাইট কমিশ ক্ষমতার বিপরিতে: 170 কেভিএ

পণ্যের বর্ণনা

Platform Type Intermediate-frequency Inverter Seamless Spot Welding Machine , Spot Welding Machine projection welding machine with CE/CCC/ISO certificate
Description:

The product has passed the patent certification of China Intellectual Property Office, obtained China CCC certification and export CE certification. It is mainly used in the welding of metal large workpiece products in sheet metal industry, chassis and cabinet, elevator industry, metal door plate, hardware household appliances and other industries. It is applicable to the welding of metal materials such as aluminum, galvanized sheet, stainless steel and low carbon steel, with good performance and high welding quality.



Large platform, convenient for supporting, taking and placing workpieces; Multi joint flexible welding arm to meet the welding of products in different directions; Small impression on the back of the welding spot and high quality of the welding surface, eliminating the grinding process; Necessary for welding large metal workpieces.

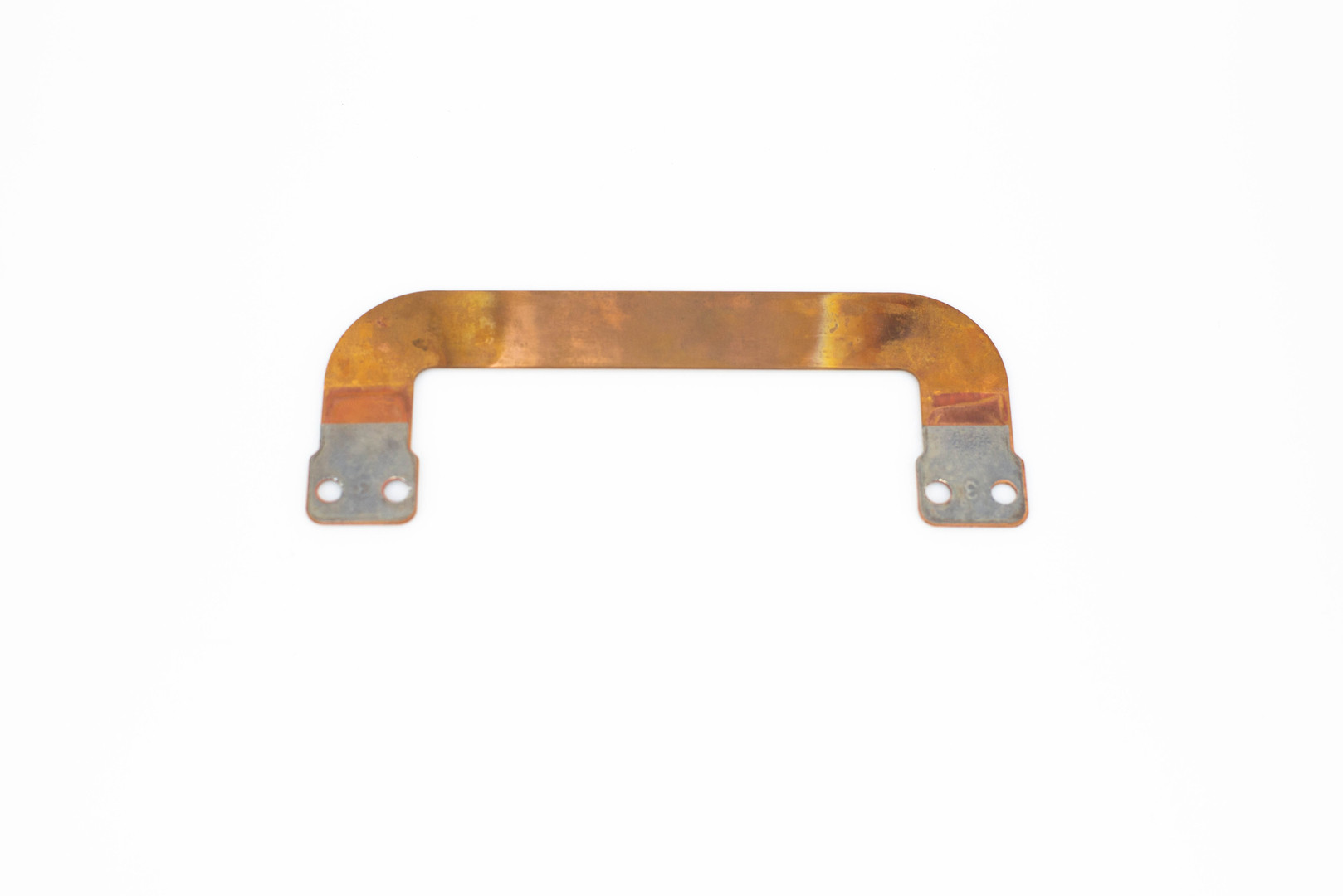

Welding material: copper
Material thickness: <1mm
Associated product name: mash welder
Industry: Metal sheet metal manufacturing industry
Process recommendation: spot welding

Platform Type Intermediate-Frequency Inverter Seamless Spot Welding Machine For Copper Sheet Welding 0


Specifications






parameter DB-170W
Rated capacity 170KVA
Welding gun type Horizontal welding gun
Torch length 390mm
short-circuit current 22000A
Load duration 20%
Electrode pressure 2000N
Welding capacity / mild steel 3.0+3.0mm
Welding capacity / aluminum plate 2.0+2.0mm
air pressure 0.6Mpa
weight 760kg
Overall dimension 1550×1000×2329mm
Table size 1000×800mm(table size can be customized according to user requirements)


Platform Type Intermediate-Frequency Inverter Seamless Spot Welding Machine For Copper Sheet Welding 1
Feature


01.The medium frequency inverter welding power supply is adopted to effectively reduce power consumption and welding spatter, and the welding quality is stable and reliable.

02.It can make your equipment management convenient, improve product quality, improve work efficiency, reduce labor intensity and improve production environment.

03.Using pneumatic pressurization can reduce the labor intensity of workers, obtain constant spot welding pressure and make the welding joints balanced and consistent. When welding iron cabinet, console and other similar parts, there are no welding pits on the outer surface of the parts, which improves the product quality.

04.The lower electrode is a forged chromium zirconium copper horizontal worktable. The workpiece can be directly placed on the worktable. It is simple to operate and easy to use. It can be easily operated without special skills or experience.

05.The output current is DC, the current is smooth, and the inductive reactance is zero.

06.The wide welding platform can realize electric lifting, which is convenient for taking and placing workpieces.

07.The outer surface of the solder joint is smooth without solder joint, deformation, grinding treatment and secondary processing dust. This not only saves the subsequent treatment process, improves the production efficiency, but also improves the working environment (no noise and dust pollution).



Platform Type Intermediate-Frequency Inverter Seamless Spot Welding Machine For Copper Sheet Welding 2

Application
Especially suitable for aluminum, copper, galvanized sheet, carbon steel, nickel, tungsten and other metal materials and high temperature enameled wire, flexible connection, inductance coil welding. It is widely used in the welding of metal products in the fields of automobile and auto parts manufacturing, new energy power battery, photoelectric communication, electric light source, compressor, hardware, furniture, kitchenware, etc. The product has passed the patent certification of China Intellectual Property Office, China CCC certification and export CE certification


Platform Type Intermediate-Frequency Inverter Seamless Spot Welding Machine For Copper Sheet Welding 3
FAQ
1. When can you arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days. We always ship by air and sea in the mean time.
2. Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
3. What’ your warranty and after-sales?
We offer 1 year warranty, various forms of online instruction and the spare parts. Professional engineers will solve problem, if necessary.
4. How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
